GFX

FIGARO CURB (LEFT AND RIGHT) AND FIGARO CABLE

Contact an agent >

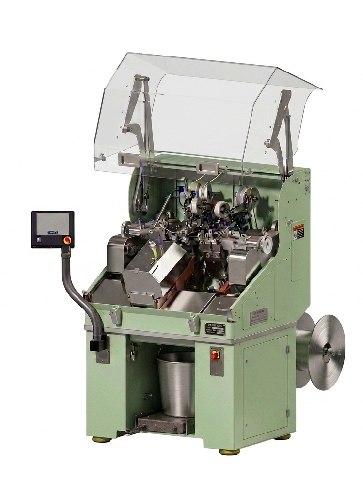

GFX_figaro_big_gold_chain_machine

AUTOMATIC MACHINE FOR THE PRODUCTION OF FIGARO CURB (LEFT AND RIGHT) AND FIGARO CABLE

Machine on stand, variable speed, programmable combination of long and short links, programmable motor-driven chain collection plate, presence / density chain sensor, wire end sensor, 2x bobbin holder din 400/250/200/160, remote control joystick, tower light, single-phase power supply: 230v, 50–60 hz, industry 4.0 module, in compliance with CE standard.

  • Industry 4.0

  • Laser

  • Main features
  • Wire dimensions: 2.00 - 4.00 mm
  • Speed: 60
Download

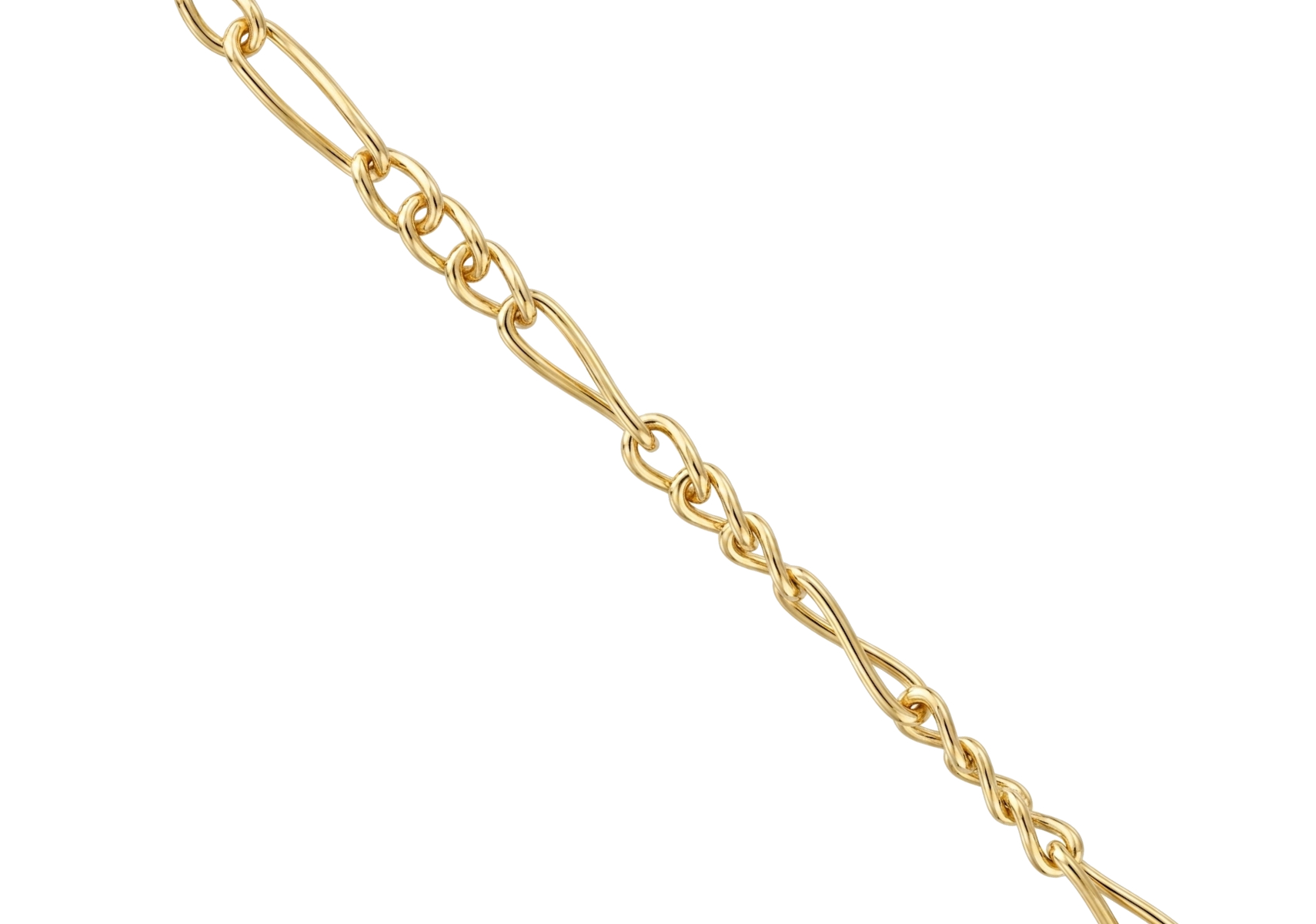

Chain

Heavy-duty machine designed to produce large-size Figaro Curb and Figaro Cable chains. It operates within a wire diameter range from 2.00 mm to 4.00 mm. Traditional configuration featuring dual jaws group for opening and closing without the use of springs, dual 30 mm diameter spiral making, and dual knife units with adjustable inclination to match the spiral angle, ensuring defect-free cutting. The drive system for the two link stations (long and short links), the pincers-mandrel movements for link threading feeding and catching, as well as the translation of the pincers group, are controlled by 4 brushless motors. The machine comes complete with a joystick for manual operation and a native Industry 4.0 module.
